제품 세부 정보
원래 장소: 중국
브랜드 이름: JingSu ShengMan
인증: CE and ISO9001
모델 번호: CT-C
지불 및 배송 조건
최소 주문 수량: 1개 세트
가격: USD20000-USD300000
포장 세부 사항: 합판 상자
배달 시간: 60-90DAYS
지불 조건: L/C (신용장), 전신환
공급 능력: 10개 세트
상태: |
새롭습니다 |
보증: |
1년이요 |
열원: |
전기 또는 스팀 또는 양쪽 |
신청: |
화학물질 |
재료: |
SUS304 |
전압: |
220V/380V |
건조용 수용량: |
35-480kg |
팬의 힘: |
0.45-1.8kw |
트롤리를 말리기: |
2-8 세트 |
제빵 트레이: |
16-192 |
상태: |
새롭습니다 |
보증: |
1년이요 |
열원: |
전기 또는 스팀 또는 양쪽 |
신청: |
화학물질 |
재료: |
SUS304 |
전압: |
220V/380V |
건조용 수용량: |
35-480kg |
팬의 힘: |
0.45-1.8kw |
트롤리를 말리기: |
2-8 세트 |
제빵 트레이: |
16-192 |

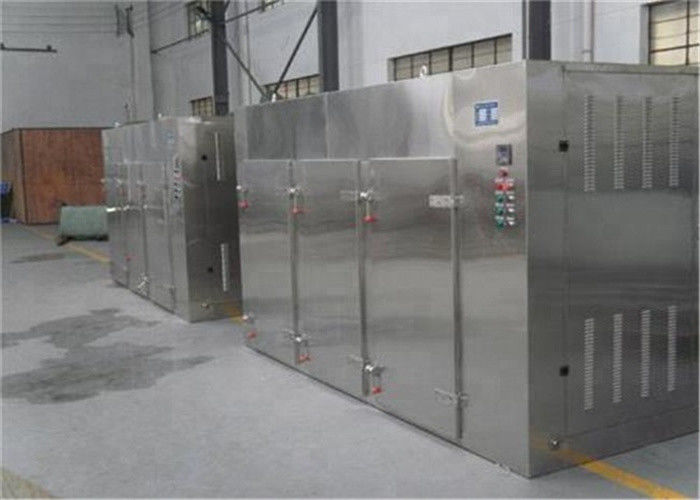

Commercial Meat Fish Drying Oven Equipment Fruit Vegetable Dehydrator Industrial Food Dryer
The working standard of the drying oven.
1. Working temperature:50-140℃(can be adjusted according to the requirement)
2. The total air flow of the hot air circulation is 3450x2=6900 m3/H
3. Heating source : electrical heating heating power: 15kw
4. Max capacity: 120kg/batch
Technical parameters
| type | batch drying capacity (kg) | power of fan | steam to be consumed (kg/h) | drying trolly (set) | baking trays | overall dimension mm |
| GMP-0 | 35 | 0.45 | 8 | / | 16 | 1130*1100*1750 |
| GMP-I | 120 | 0.45 | 18 | 2 | 48 | 2300*1200*2000 |
| GMP-II | 240 | 0.9 | 36 | 4 | 96 | 2300*2200*2000 |
| GMP-III | 360 | 1.35 | 54 | 6 | 144 | 3430*2200*2000 |
| GMP-IV | 480 | 1.8 | 72 | 8 | 192 | 4460*2200*2290 |
Note: The above data is for reference only. If having special requirements, the factory can provide the service of consultation and design.
APPLICATION
Applicable to the pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, Heavy industries, such as heating materials and products curing, drying dehydration. Raw materials such as medicine, health medicine, Chinese medicine Pieces, extract, powder, granules, granules, Shuiwan, bottles, paint dyes, dehydrated vegetables, melons and other fruits dry sausage, plastic resins, electrical components, such as Hongqi.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
